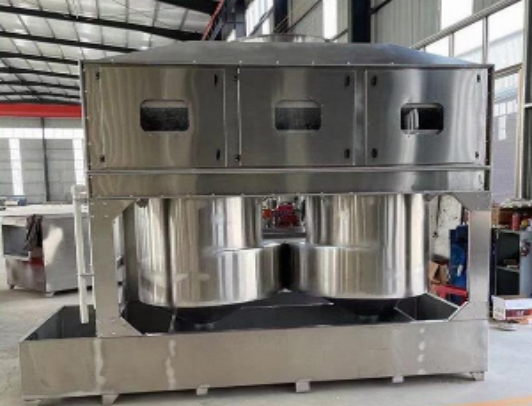

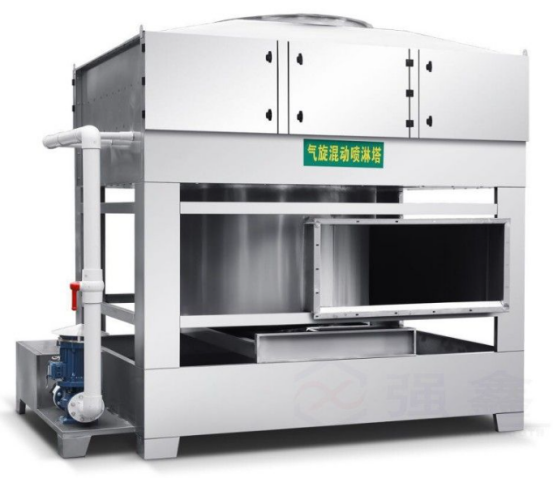

Cyclonic Mixed Flow Spray Tower (CMST)

Overview

Cyclonic mixed flow spray tower is a system that embedded in the "pneumatic mixed flow exhaust gas purification system"on the basis of ordinary painted water curtain cabinet. The system is a totally new wet method exhaust gas purification equipment with high efficiency and environmentally friendly. It is designed according to the principle of technical power technology, mainly for the pre-treatment of viscous dust and oily dust, as well as the fiber dust that other dry dust removal equipment can not deal with. The purification efficiency is determined by using advanced rolling mist separation technology, ingenious purification method and the multi-stage continuous purification process, with the purification rate as high as 95%. Cyclonic spray tower is simple and practical in use, easy to maintain, and versatile. It is suitable for the purification of exhaust gas and powder in various industrial fields (especially suitable for painting and coating, paint mist treatment, grinding and polishing dust treatment, VOCs exhaust gas pretreatment, etc.).

Working Principle

Under the action of centrifugal force, the dust-containing gas is in transverse centripetal motion, increasing long enough residence time, and gets better washing effect, which thoroughly improves the technical defects of the spray tower under some specific working conditions, such as incomplete dust removal and easy blockage of the water spray tower. Cyclonic tower adopts technology to avoid the blockage of the pump and sprinkler, improves the production efficiency, and the water in the pool can be recycled, so as to avoid the trouble caused by secondary pollution and save water resources. Several circular cyclonic barrels and defogging panels are installed in the cyclonic mixed flow spray tower. The swirl barrel is filled with solid packing balls, and the defogging plate of the upper layer is used to purify the water mist, to achieve the purpose of dewatering and defogging, and the dust-containing gas swirls up in the tower, and contacts with the liquid swirl entering from the top of the tower on each plate to complete the dust removal task; Through the action of centrifugal force, the large particles in the exhaust gas sink into the pool, and then the casing is manually fished out and cleaned, so that the gas is deeply purified and discharged up to the standard requirement, and the water in the cyclonic mixed flow spray tower can continue to be recycled.

Features of CMST

1. It integrates smoke elimination, dust removal, desulfurization, absorption, and separation of gray and water , and efficiently transfers and absorbs mass.

2. The swirl plate is installed in the tower, the gas and liquid are fully mixed, and the swirl anti-clogging measures are taken to reduce the mass transfer resistance and greatly improve the absorption effect.

3. It has the ability of corrosion resistance and anti-aging, compact structure, large operation flexibility, and is easy to install, maintain and manage.

4. Easy installation, less equipment footprint, high purification efficiency.

5. Energy saving and environmental protection, low water and electricity consumption, no secondary pollution.

6. The equipment is corrosion-resistant, and the materials are made of high-quality A3, stainless steel or PP materials, which are not worn out and have a long service life.

Application: purification of dust exhaust gas, VOCs, organic odor, smoke and paint mist, desulfurization and dust removal and oil smoke.

Application

Purification of dust exhaust gas, VOCs, organic odor, smoke and paint mist, desulfurization and dust removal and oil smoke.

Technical Parameter of CMST and Specification Selection Sheet

Application of CMST

1. The cyclonic tower has a variety of uses: acid mist removal, odor removal, sulfur removal, dust removal, oil mist removal, etc. It is widely used in pre-treatment of industrial exhaust gas purification and dust removal.

2. Treatment of various harmful gases such as: H2S, SOx, NOx, HCI, NH3, Cl2 , etc..

3. Deodorization device of garbage transfer station or plant and sewage treatment plant.

4. Exhaust treatment of semiconductor optoelectronic process.

5. Exhaust gas treatment of seepage water storage tank in landfill.

6. Treatment of exhaust gas emitted from incinerator and industrial furnace.

Our engineering team can walk you through the design process and help you choose the suitable cyclonic mixed flow spray tower (CMST) that best fits your needs and at a price that will fit your budget. Please contact us for more information and obtain quotation concerning your request.
