Screw Belt Mixer

Overview

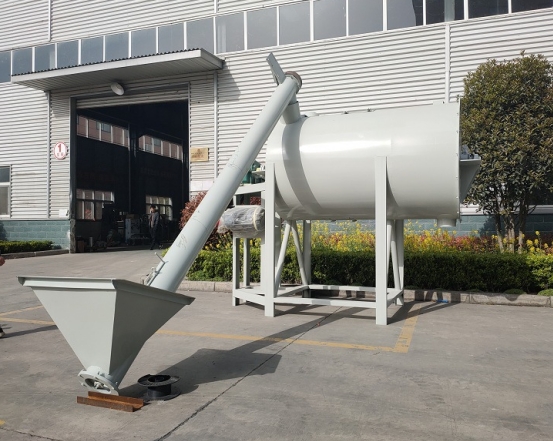

Screw belt mixer, also known as dry powder mixer or dry mortar mixer, is a mechanical equipment that uses the rotation of spiral blades to evenly mix two or more kinds of powder materials. The dry mortar mixer can mix a variety of materials into a uniform mixture; It can increrase the contact area between materials to promote chemical reactions; It can also accelerate the change of the physical properties of the material, for example, adding quantitative solvent to the granular solute; It can accelerate the dissolution and even mixing of materials through the mixer. Screw belt mixer is suitable for the production of putty powder, putty paste, stucco plaster, grout, plaster, dry mortar, etc. The screw belt mixer has two structures: the horizontal structure and the vertical structure. The processing capacity of each batch can reach 1000-5000KG, and 2-10 batches can be processed per minute. Please select the corresponding mixer power and lifting power according to the demand of the processing capacity.

Working Principle

When the mixer is working, the inner spiral drives the material close to the shaft to rotate, and the material is pushed from the inside to the outside towards the cylinder wall; the outer spiral drives the material close to the cylinder wall to rotate towards the inside, and the material is turned in the maximum range in the cylinder, forming convection circulation, shearing and mixing, then the rapid and uniform mixing is completed in a short time.

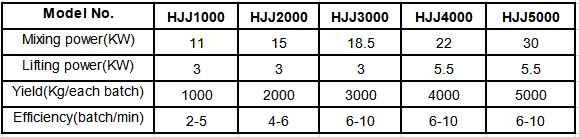

Specification

Our engineering team can walk you through the design process and help you choose the suitable screw belt mixer that best fits your needs and at a price that will fit your budget. Please contact us for more information and obtain quotation concerning your request.
