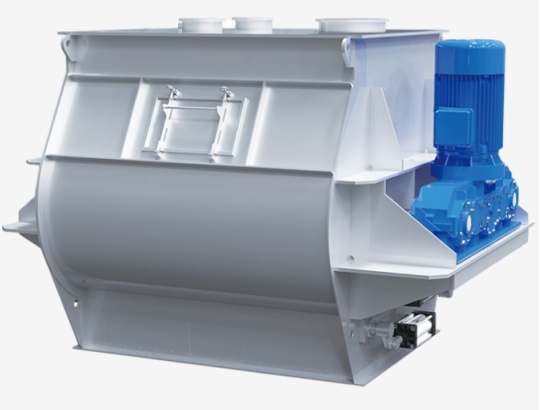

Double Shaft Paddle Gravity-free Mortar Mixer

Overview

The double shaft paddle gravity-free mixer is developed by integrating the essence of double shaft paddle mixers at home and abroad, and is an ideal mixing equipment with low speed, high efficiency and energy saving. The gravity-free double shaft paddle mixer has a short mixing time, which is 1-3 minutes. The chain drive is adopted, and the wheels are all forged and rolled, which can be started under full load; The paddle can be replaced when worn, so the whole machine does not need to be scrapped. The two stirring shafts in the horizontal cylinder rotate in the opposite direction at equal speed, and the paddles arranged at special angles on the shaft ensure the radial, circumferential and axial three-way throwing movement of the material, forming a compound cycle and achieving uniform mixing in a very short time. The seal of spindle adopts the advanced labyrinth air pressure seal from Germany, and the special structure of the discharge valve solves the leak problem.

Scope of Application

The double shaft paddle gravity-free mixer is widely used in chemical, pesticides, food, additives, building materials, mining, metallurgy, coatings, slurries, plastics, powder drying and other fields, and can atomize and spray a small amount of liquid to meet the needs of different processes and achieve good economic and social benefits.

There are paddles inside the double shaft paddle gravity mortar mixer. The strong turning speed can shorten the mixing time, and the critical throwing speed can make the material achieve uniform mixing, so this machine is the first choice for mass production of materials, such as the dry mortar assembly line.

Features

1. Fast mixing speed, and mixing time for each batch is 0.5-2.5 min;

2. High mixing uniformity, and the coefficient of variation is  ≤5%;

3. The segregation will not likely to come up when mixing the materials with large differences in physical properties, such as specific gravity, particle sizes, and shapes;

4. The range of liquid addition is large, and the maximum addition amount can reach 20%;

5. The variable range of the full fills is large to be 0.4-0.8;

6. The power consumption is low, which is 60% lower than that of the ordinary horizontal screw belt mixer;

7. Wide range of appllications. Carbon steel, semi-stainless steel, and 100% stainless steel can be used according to the needs of users. Especially suitable for the mixing of high-precision materials.

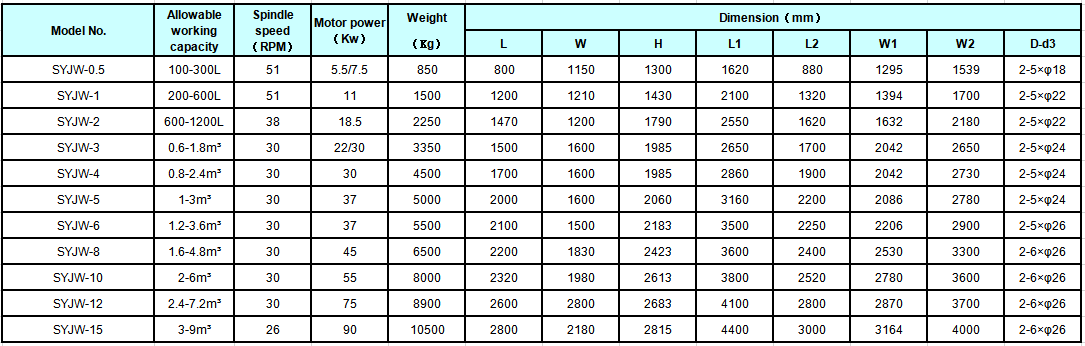

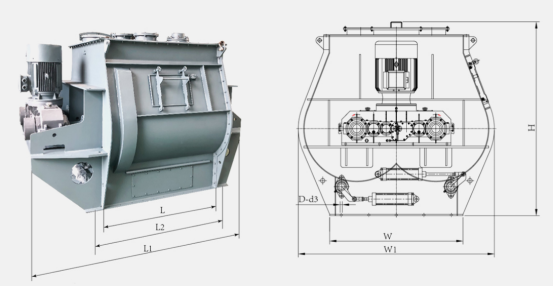

Technical Parameter and Specifications

Our engineering team can walk you through the design process and help you choose the suitable double shaft paddle gravity-free mixer that best fits your needs and at a price that will fit your budget. Please contact us for more information and obtain quotation concerning your request.
