Vacuum Plough Drying Mixer

1. This machine adopts the heating method of sandwich and internal stirring at the same time, with large heat transfer surface and high thermal efficiency;

2. Built-in stirring, so that the slurry, paste, paste materials can be dried smoothly;

3. Make the material form a continuous circulation state in the tank, which further improves the uniformity of the material heating.

INQUIRY

Details

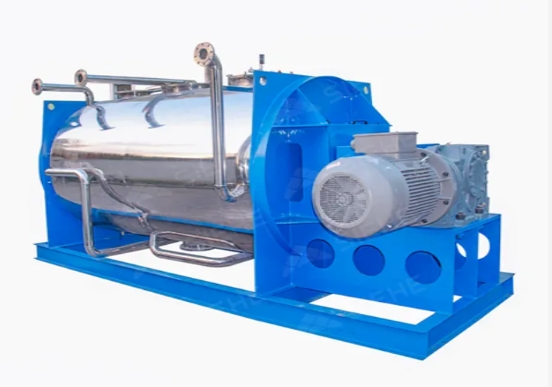

Vacuum Plough Drying Mixer

Overview

Vacuum plough drying mixer, is also known as vacuum mixer or vacuum dryer. Its main function is to heat and dry the mixed materials under vacuum conditions. The vacuum pump is used to dehumidify the air by forming a vacuum status in the circular barrel and speed up the drying speed of the mixed materials. It can obtain a high drying rate at a lower temperature, meanwhile the heat is fully utilized. It can dry at low temperature or dry the heat sensitive materials, especially suitable for drying materials containing solvents that need to be recovered. This machine adopts the sandwich heating method, the heat transfer area is large, the thermal efficiency is high, and the stirring movement is set to form a continuous circulation state in the tank, which further improves the heating uniformity of the material. It is suitable for drying the heat-sensitive materials or materials that are easy to oxidize, explosive, strongly irritating and highly toxic in the pharmaceutical, chemical, food, electronics, traditional Chinese medicine and other industries in the forms of slurry, paste, powder and require low drying temperature.

Features

1. This machine conducts the sandwich heating and internal stirring at the same time, with large heat transfer area and high thermal efficiency;

2. Built-in stirring, so that the slurry, paste, powder materials can be dried smoothly;

3. Make the material form a continuous recycling status in the tank, which further improves the heating uniformity of the mixed materials.

Applications

It is suitable for the drying of slurry, paste and powder materials in pharmaceutical, food, chemical and other industries, and is also suitable for heat-sensitive materials that require low drying temperature, as well as materials that are easy to oxidize, explosive, and strongly irritating and highly toxic materials.

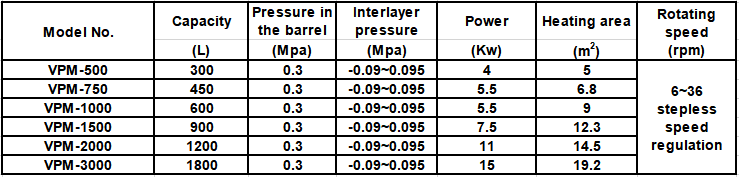

Specification

Our engineering team can walk you through the design process and help you choose the suitable vacuum plough mixer that best fits your needs and at a price that will fit your budget. Please contact us for more information and obtain quotation concerning your request.
