Chain-plate Conveyor

Key Features

1. Flat and smooth in the conveying surface of the chain-plate conveyor and operation lines. The friction is low, and the transition of materials between the conveyor lines is smooth.

2. The chain-plate is made of stainless steel or engineering plastics, with a wide variety of specifications, which can be selected according to the conveyed materials and process requirements. It can meet the different needs of all the industrial applications.　 　

3. The conveying speed is accurate and stable, which can ensure accurate synchronous conveying.

4. The chain-plate conveyor and operation line can generally be directly washed with water or directly soaked in water. The equipment is easy to clean and can meet the hygiene requirements of the food and beverage industry.

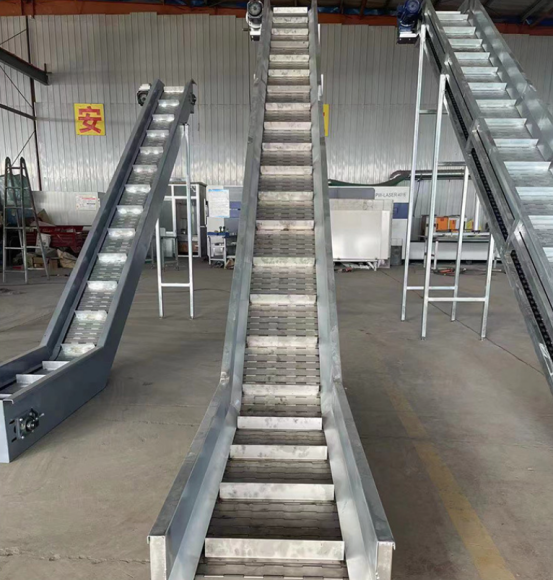

5. Flexible equipment layout. Horizontal, inclining and turning convey can be completed on a single conveyor line.　

6. The structure of the equipment is simple and the maintenance is convenient.

Ordering Instructions

1. The width of the horizontal conveying chain-plate comes to 63.5mm, 82.5mm, 101.6mm, 114.3mm, 152.4mm, 190.5mm, 254mm and 304.8mm;

2. The width of the turning chain-plate comes to 82.5mm, 114.3mm, 152.4mm, 190.5mm and 304.8mm.

3. Material: optional for carbon steel, stainless steel, plastic steel and plastics.  Different width and shape of the chain plate can be selected to accommodate to the plane conveying or turning, lifting, descending or other process requirements.

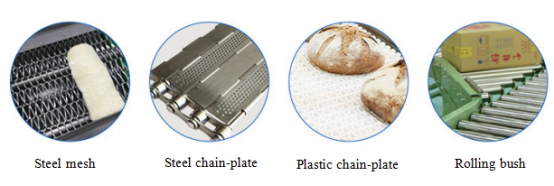

Steel mesh, steel chain-plate, plastic chain-plate and rolling bush types can be selected from.

Applications

The chain-plate conveyor is widely used for automatic in-line conveying, distribution and packaging of food, canned food, medicine, beverages, cosmetics, detergents, paper products, condiments, dairy and tobacco.

Our engineering team can walk you through the design process and help you choose the suitable conveyor that best fits your needs and at a price that will fit your budget. Please contact us for more information and obtain quotation concerning your request.
