LQM Series Air-box Pulse Jet baghouse Dust Collector for Coal Mills

Overview

LQM series air-box pulse jet baghouse dust collector designed for coal mills is a series of high-efficiency dust collector newly developed by our company. It has an explosion-proof structure equipped with an explosion-proof valve, which is suitable for the preparation system of pulverized coal and the collection of flammable and explosive dust. It adopts the advanced chamber off-line cleaning method to prevent the "re-adsorption" phenomenon of dust after dust cleaning, and has the characteristics of large dust cleaning energy, good dust cleaning effect, low system resistance, long service life of filter bags, and high dust removal efficiency. The whole machine is automatically controlled by PLC, and the parameters can be adjusted according to the process change.

This type of dust collector is composed of different chambers and in which contains different quantity of filter bags, so it comes into a variety of different specifications. There are three kinds of different filter bag quantities in each chamber, 32, 64 and 96. The diameter of the filter bag is 130mm, and the length of the filter bag is 2450mm.

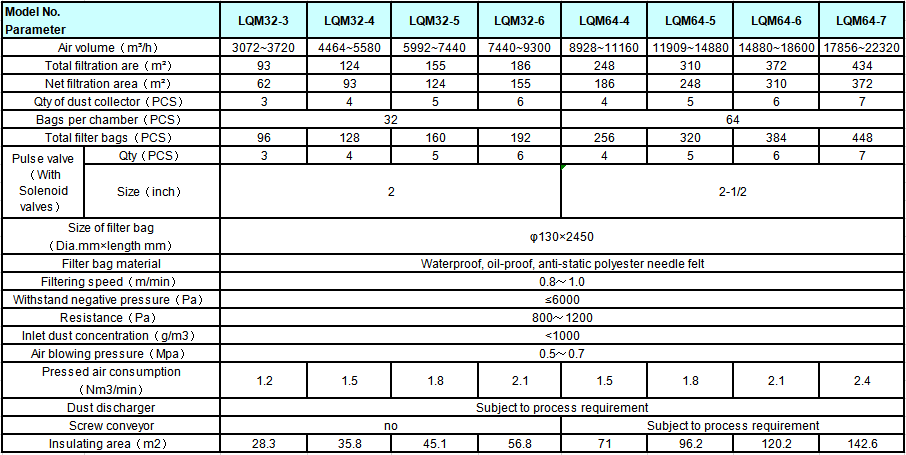

Technical Data and Parameter Chart for LQM32 and LQM64

Note：CO2 automatic fire extinguishing device can be equipped according to customers requirements.

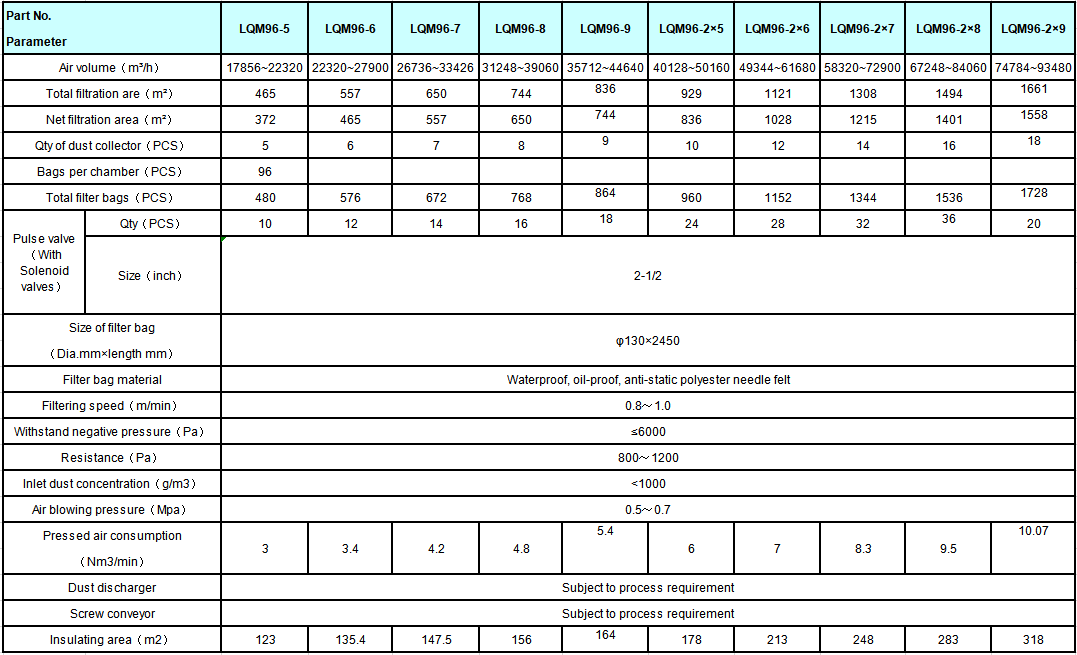

Technical Data and Parameter Chart for LQM96

Note：CO₂ automatic fire extinguishing device can be equipped according to customers requirements.

Our engineering team can walk you through the design process and help you choose the suitable baghouse dust collector that best fits your needs and at a price that will fit your budget. Please contact us for more information and obtain quotation concerning your request.
